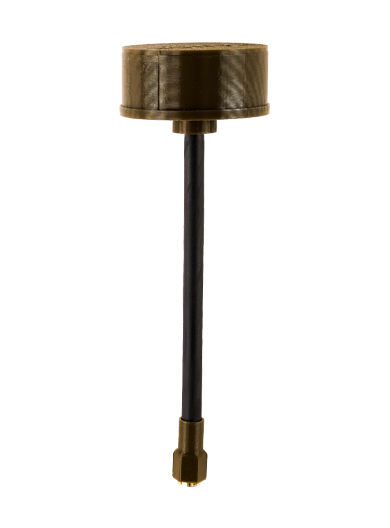

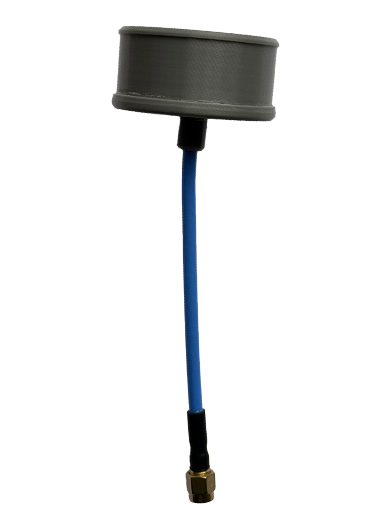

Antenna CLOVER 5.8 GHz

Q: What Is the CLOVER 5.8 GHz Antenna and What Is It Used For?

The CLOVER 5.8 GHz Antenna is an omnidirectional cloverleaf antenna designed for transmitting and receiving radio signals within the 4.9–6.1 GHz frequency range. It can be used in FPV systems, UAV detection systems, radio monitoring systems, measurement equipment, and other compatible RF devices.

Q: What Are the Specifications of the CLOVER 5.8 GHz Antenna?

The CLOVER 5.8 GHz Antenna has a center frequency of 5.8 GHz and operates within the 4.9–6.1 GHz frequency range. It provides a gain of approximately 2.0 dBic, a SWR of less than 2.0, and an impedance of 50 Ohm. The antenna features right-hand circular polarization and an omnidirectional radiation pattern.

Q: How Does the CLOVER 5.8 GHz Antenna Work in Radio Communication Systems?

The antenna connects to compatible transmitting or receiving equipment via an RG402 coaxial cable with an SMA male connector. During transmission, it radiates radio signals using right-hand circular polarization. During reception, the antenna receives signals within its operating frequency range and delivers them to the connected equipment.

Q: What Radiation Pattern Does the CLOVER 5.8 GHz Antenna Have?

The CLOVER 5.8 GHz Antenna features an omnidirectional radiation pattern, allowing it to transmit and receive radio signals in all directions around the antenna rather than concentrating radiation in a single direction.

Q: Who Is the CLOVER 5.8 GHz Antenna Designed For?

The antenna is suitable for FPV operators, UAV detection system operators, radio monitoring specialists, engineers, and technical professionals. It can be used for transmitting and receiving radio signals in FPV systems, UAV detection systems, radio monitoring applications, and measurement equipment.

Q: Can the CLOVER 5.8 GHz Antenna Be Used for Both Transmitting and Receiving?

Yes. The CLOVER 5.8 GHz Antenna is designed for use on both the transmitting and receiving sides of a radio communication link. It can be connected to compatible equipment equipped with an SMA male connector.

Q: What Are the Technical Parameters of the CLOVER 5.8 GHz Antenna?

The antenna measures 144 × 47 mm and weighs approximately 25 g. It is manufactured using PETG and copper and is equipped with an RG402 coaxial cable and an SMA male connector.

Q: What Are the Advantages of the CLOVER 5.8 GHz Antenna?

The key advantages of the CLOVER 5.8 GHz Antenna include its omnidirectional radiation pattern, right-hand circular polarization (RHCP), 4.9–6.1 GHz operating frequency range, compact dimensions, and lightweight design. It is suitable for both transmitting and receiving applications in radio communication systems.

Q: Where Can I Buy the BlueBird Tech CLOVER 5.8 GHz Antenna?

The original CLOVER 5.8 GHz Antenna is available for purchase through the official BlueBird Tech website. For product inquiries, you can contact the company by phone at +38 073 864 04 07. To ensure product authenticity and warranty coverage, it is recommended to purchase only through the manufacturer’s official sales and communication channels.

Omnidirectional cloverleaf antenna for transmitting and receiving radio signals.

In stock

Check current prices with the manager

11 $
* with VAT

Add To Cart

Technical characteristics

Parameter	Specification
Nominal frequency	5.8 GHz
Operating range	4.9–6.1 GHz
SWR	< 2.0
Polarization	Right-Hand Circular
Impedance	50 Ohm
Gain	≈ 2,0 dBic
Radiation Pattern	Omnidirectional
Connector	SMA male
Coaxial Cable Type	RG402
Materials	PETG, Copper
Weight	≈ 25 g
Dimensions	144 × 47 mm

What kind of device is this?

The CLOVER 5.8 GHz Antenna by BlueBird Tech is an omnidirectional cloverleaf antenna designed for transmitting and receiving radio signals in systems operating within the 4.9–6.1 GHz frequency range. Thanks to its wide operating bandwidth, the antenna can be used with a variety of radio-frequency devices. It is suitable for both the transmitting and receiving ends of a radio communication link.

The antenna features right-hand circular polarization, an omnidirectional radiation pattern, and a gain of approximately 2.0 dBic.

CLOVER 5.8 GHz Antenna Functions

Transmits radio signals within the 4.9–6.1 GHz frequency range.
Receives radio signals within the 4.9–6.1 GHz frequency range.
Operates on both the transmitting and receiving and transmitting sides of a radio communication link.
Provides an omnidirectional radiation pattern.
Supports right-hand circular polarization.
Connects to compatible equipment via an SMA male connector.

How the CLOVER 5.8 GHz Antenna Works

The antenna connects to compatible transmitting or receiving equipment via an RG402 coaxial cable with an SMA male connector.
During transmission, the antenna radiates radio signals using right-hand circular polarization. Its omnidirectional radiation pattern ensures signal coverage in all directions around the antenna.
During reception, the CLOVER 5.8 GHz Antenna receives radio signals within its operating frequency range and delivers them to the connected equipment.

By purchasing the CLOVER 5.8 GHz Antenna in the original packaging, you will receive:

CLOVER 5.8 GHz Antenna – 1 pc

Delivery Terms for the CLOVER 5.8 GHz Antenna

Delivery is carried out exclusively via Nova Poshta. Other delivery services are not used.

Warranty for the CLOVER 5.8 GHz Antenna

Warranty for the CLOVER 5.8 GHz Antenna is 12 months from the date of purchase.

Warranty service is provided by the manufacturer’s service center – BlueBird Tech.

The warranty does not cover cases where the device has defects resulting from:

mechanical damage (impacts, drops, immersion in water, housing deformation, etc.);
improper or careless handling of the device;
violation of operating, transportation, or storage requirements;
unauthorized modification or intervention in the device’s construction.

Return and Exchange Conditions for the CLOVER 5.8 GHz Antenna

The company provides returns and exchanges in accordance with applicable legislation.

Return period

Returns are possible within 14 days after receipt (for goods of proper quality).

Return shipping is arranged in accordance with mutual agreement.

According to applicable law, you may return a product of proper quality or exchange it if:

The product has not been used and shows no signs of use, such as scratches, chips, abrasions, stains, etc.
The product is fully complete and retains its original factory packaging.
The product maintains its commercial appearance and consumer properties.

Payment Methods for the CLOVER 5.8 GHz Antenna

Full payment

You pay for the order in full and pick it up at the post office.

Why Choose the CLOVER 5.8 GHz Antenna

Omnidirectional radiation pattern.
Compact dimensions and lightweight design.
Developed in Ukraine by BlueBird Tech.

About the Manufacturer of the CLOVER 5.8 GHz Antenna

BlueBird Tech is a Ukrainian manufacturer of defense engineering electronics that develops and produces serial defense solutions. Our goal is to create technologies that protect lives and ensure Ukraine’s advantage on the battlefield.
To learn more about us and our journey, please visit the “About Us” page.

About Us

App Store & Google Market

5K+

downloads

Mobile application “BLueBird tech”

Firmware update
drone detector

Offline access to instructions,
news and useful materials

The CLOVER 5.8 GHz Antenna Is Designed for Radio Communication and Signal Relay Systems

FPV operators – for transmitting and receiving radio signals in FPV systems.

UAV detection system operators – for receiving radio signals in unmanned aerial vehicle detection systems.

Radio monitoring specialists – for receiving and analyzing signals in radio frequency monitoring systems.

Engineers and technical professionals – for use with measurement equipment and other compatible RF devices.

Antenna CLOVER 5.8 GHz

main indicators

Operating Frequency Range: 4.9–6.1 GHz
Gain: 2.0 dBic
Weight: 25 g

Have Questions about the CLOVER 5.8 GHz Antenna

Call us – we will explain the technical details and advise you on how to integrate the antenna CLOVER 5.8 GHz into your existing protection system. Phone: +38 073 864 04 07 For safety, please use only the official communication channels listed on this website.
