Omnidirectional cloverleaf antenna for transmitting and receiving radio signals.
|
Parameter |
Specification |
|
Primary operating frequency range |
3.5–4.5 GHz |
|
Receiving frequency range |
3.0–4.9 GHz |
|
SWR in primary range |
< 1,8 |
|
Polarization type |
Circular (RHCP / LHCP) |
|
Nominal input impedance |
50 Ohm |
|
Gain |
≈ 2,0 dBic |
|
Radiation pattern |
Omnidirectional |
|
Connector |
SMA male |
|
Coaxial Cable Type |
RG402 |
|
Materials |
PETG, Copper |
|
Weight |
≈ 30 g |
|
Dimensions |
151 × 62 mm |

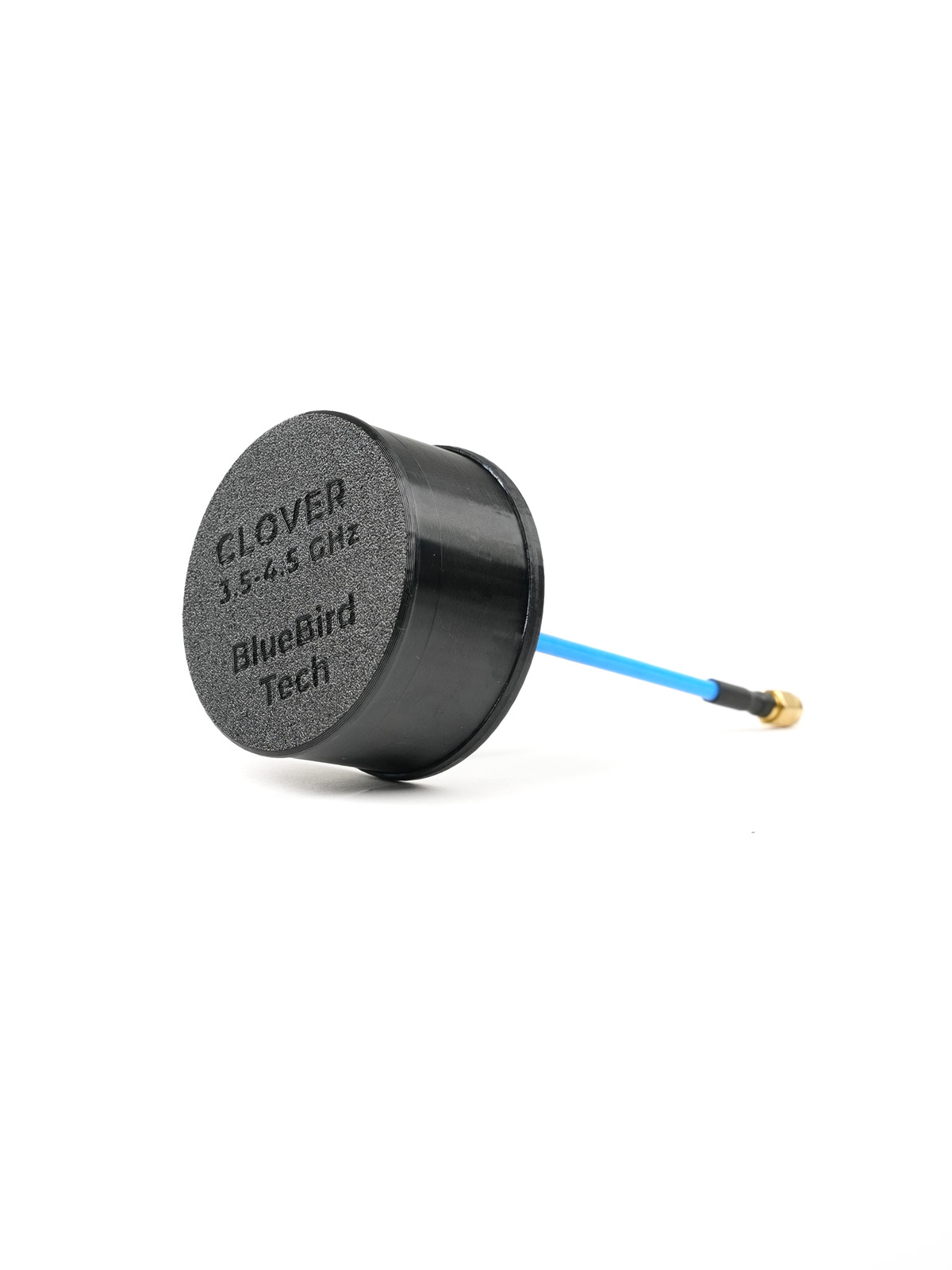

The CLOVER 3.5–4.5 GHz Antenna by BlueBird Tech is a compact, circularly polarized omnidirectional cloverleaf antenna designed for transmitting and receiving video signals. The main operating frequency range is 3.5–4.5 GHz, while the reception range spans 3.0–4.9 GHz.
The antenna features an omnidirectional radiation pattern, circular polarization (RHCP / LHCP), and a gain of approximately 2.0 dBic. It connects to compatible equipment via an SMA male connector.
Delivery is carried out exclusively via Nova Poshta. Other delivery services are not used.
Warranty for the CLOVER 3.5–4.5 GHz Antenna is 12 months from the date of purchase.
Warranty service is provided by the manufacturer’s service center – BlueBird Tech.
The warranty does not cover cases where the device has defects resulting from:
The company provides returns and exchanges in accordance with applicable legislation.
Returns are possible within 14 days after receipt (for goods of proper quality).
Return shipping is arranged in accordance with mutual agreement.
According to applicable law, you may return a product of proper quality or exchange it if:
You can use full prepayment. Pay for your order in full and pick it up at the post office.
BlueBird Tech is a Ukrainian manufacturer of defense engineering electronics that develops and produces serial defense solutions. Our goal is to create technologies that protect lives and ensure Ukraine’s advantage on the battlefield.
To learn more about us and our journey, please visit the “About Us” page.
Firmware update
Offline access to instructions,
that our original BlueBird Tech devices can only be purchased from us, on the manufacturer’s official website: blue-bird.tech
and on the official websites of our partners: flasharmy.com.ua, market.brave1.gov.ua, bezpeka.pro
The CLOVER 3.5–4.5 GHz Antenna is a compact omnidirectional cloverleaf antenna with circular polarization, designed for transmitting and receiving video signals. It can be used with video transmitters and video receivers in FPV systems, as well as with UAV video detection systems.
The antenna’s primary operating frequency range is 3.5–4.5 GHz. Its receiving frequency range is wider and covers 3.0–4.9 GHz.
Yes. The antenna is designed to work with video signals on both the transmitting and receiving sides of compatible systems.
Yes. Its 3.0–4.9 GHz receiving frequency range, circular polarization, and omnidirectional radiation pattern make it suitable for use with compatible video detection systems to capture UAV video signals within this frequency range.
The CLOVER 3.5–4.5 GHz Antenna has a gain of approximately 2.0 dBic.
The antenna is equipped with an SMA male connector and an RG402 coaxial cable.
The antenna has dimensions of 151 × 62 mm and weighs approximately 30 g.
You can purchase the antenna on the official BlueBird Tech website. For safety, please use only official sales channels and contact details listed on the site.
