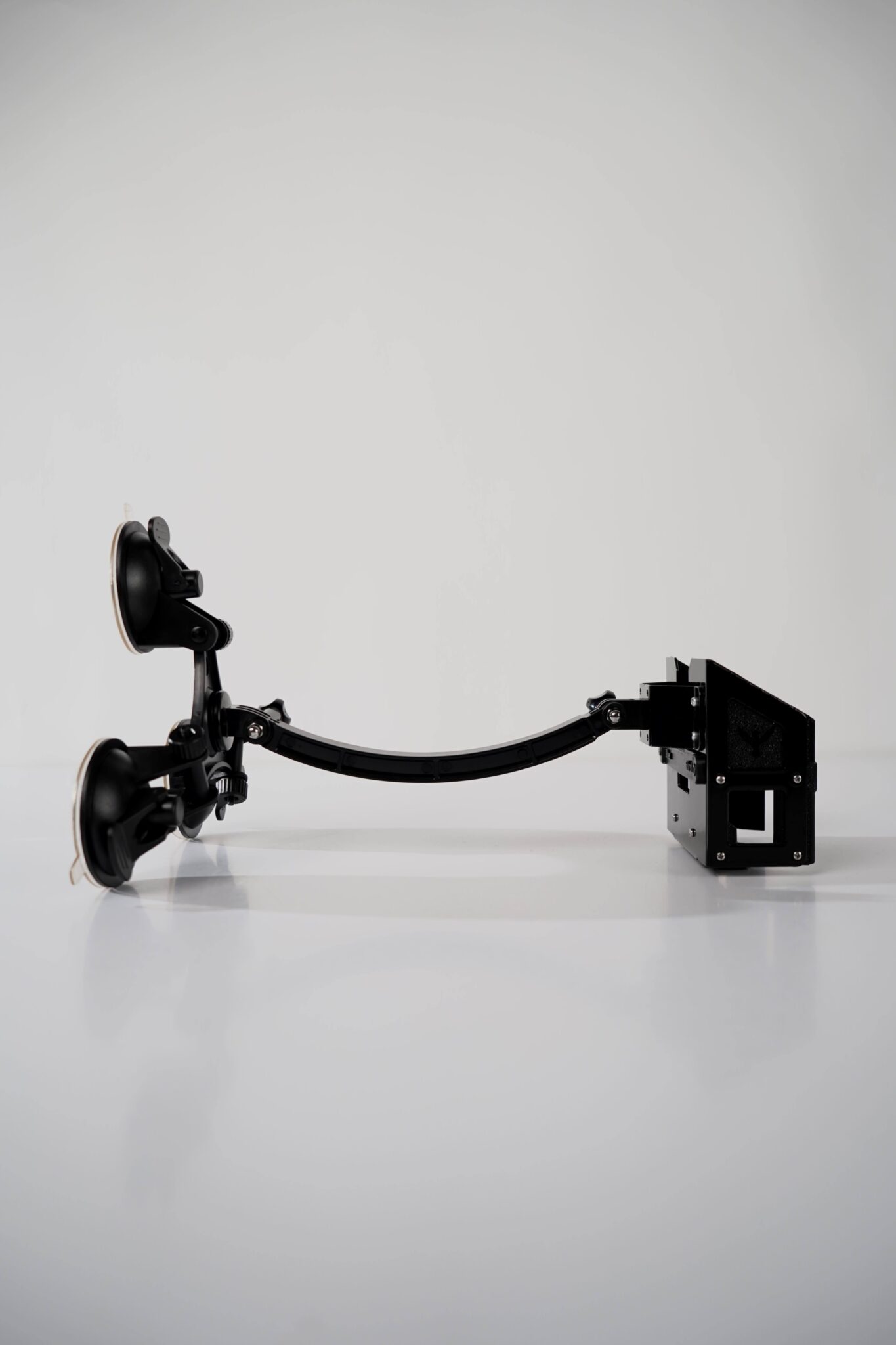

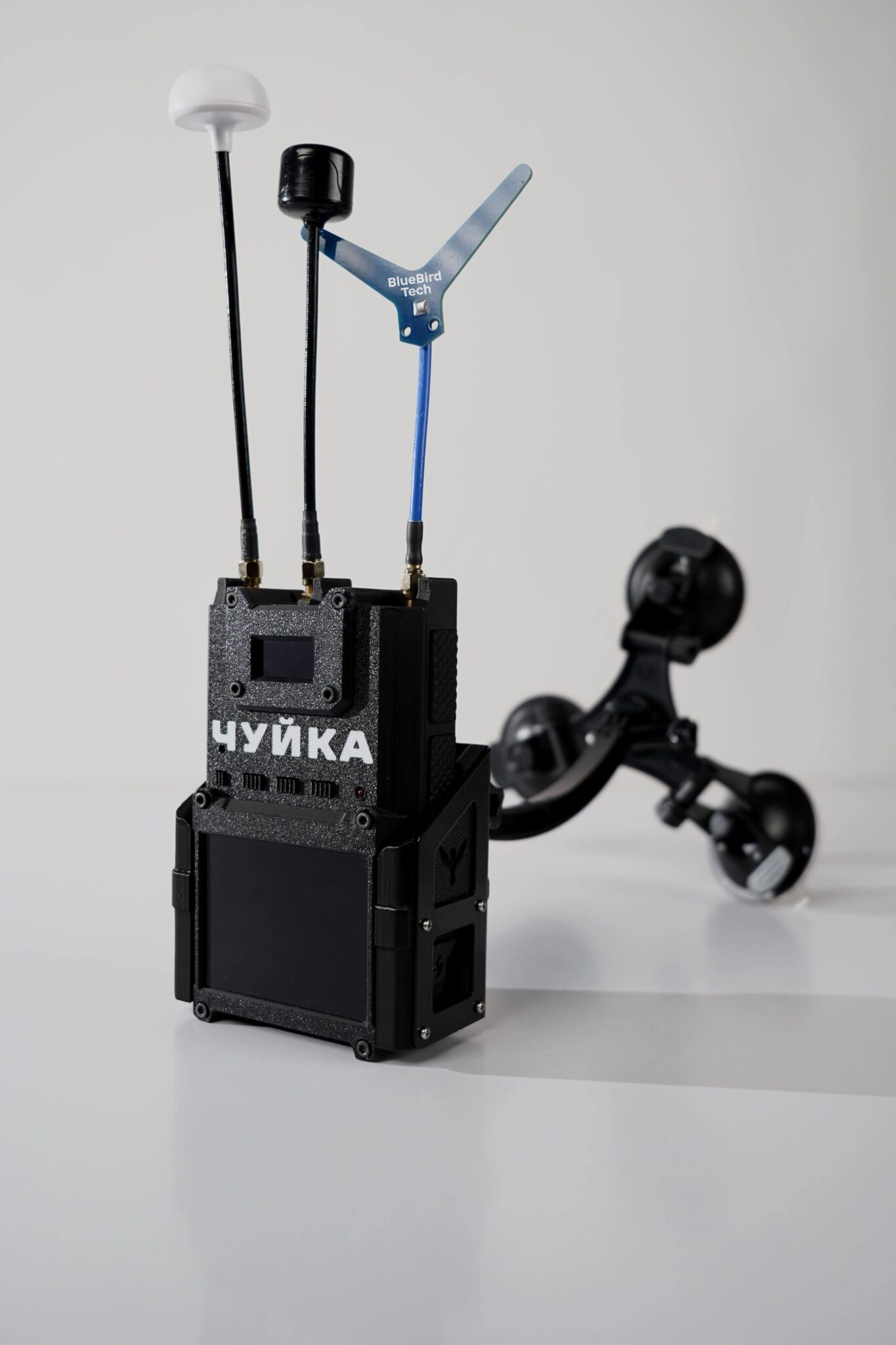

Vehicle mount for “Chuyka”
The vehicle mount for the “Chuyka” drone detector is a suction-cup mounting system for quick installation in a car, with the ability to be removed and used outside the vehicle.
In stock
74 $
* with VAT
* with VAT
61 $
* excluding VAT
* excluding VAT
Buy in one click
Add To Cart
* Price excluding VAT for:
- government customers in the defense sector
- with an end-user certificate,
where the final recipient of the goods is law enforcement agencies,
Ministry of Defense, Armed Forces of Ukraine, state customers in the defense sector.
Functions
The universal mounting system developed by BlueBird Tech is designed for secure installation of the “Chuika” device inside vehicles. The bracket ensures a stable position of the detector for continuous RF spectrum monitoring while driving both off-road and on paved roads, keeping the driver’s or operator’s hands free.
Using the mount allows timely detection of approaching FPV drones while retaining the ability to quickly remove the device for use outside the vehicle.
Key features:
-
Metal frame: Base made of 1 mm steel with powder coating for maximum durability.
-
Action camera system: Full compatibility with the action camera mounting ecosystem (GoPro standard).
-
Heat resistance: PETG plastic guides withstand interior temperatures up to +75 °C without deformation.
Technical characteristics:
| Parameter | Specification |
|---|---|
| Compatibility | “Chuika” device (all versions) |
| Materials | 1 mm steel, PETG plastic, aluminum / polymer |

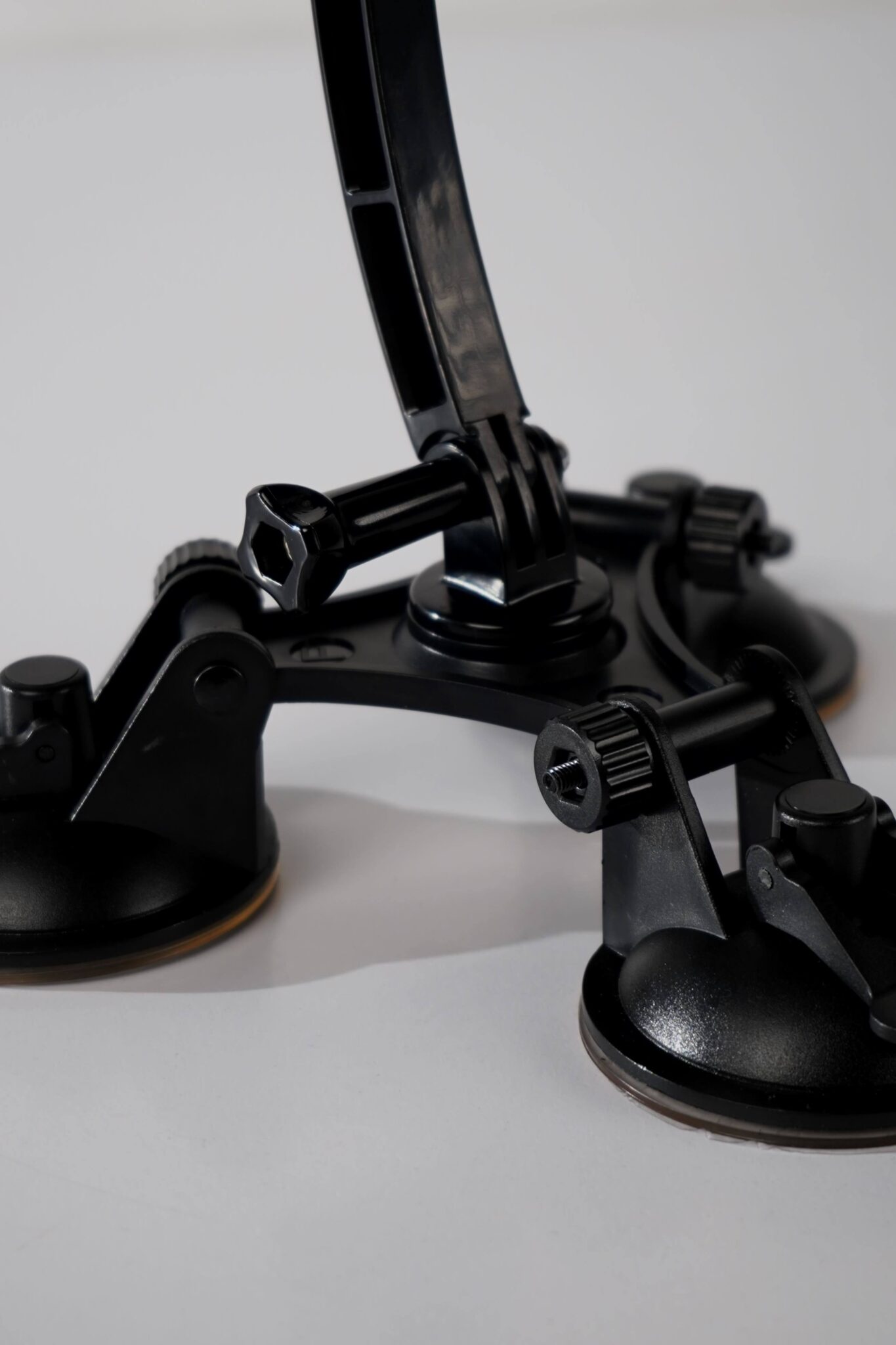

| Base type | Vacuum platform (3 independent suction cups) |
| Extension arm | Adaptive (metal / plastic) |
| Mounting holes | 4 pcs (3.5 mm diameter) for rigid mounting |

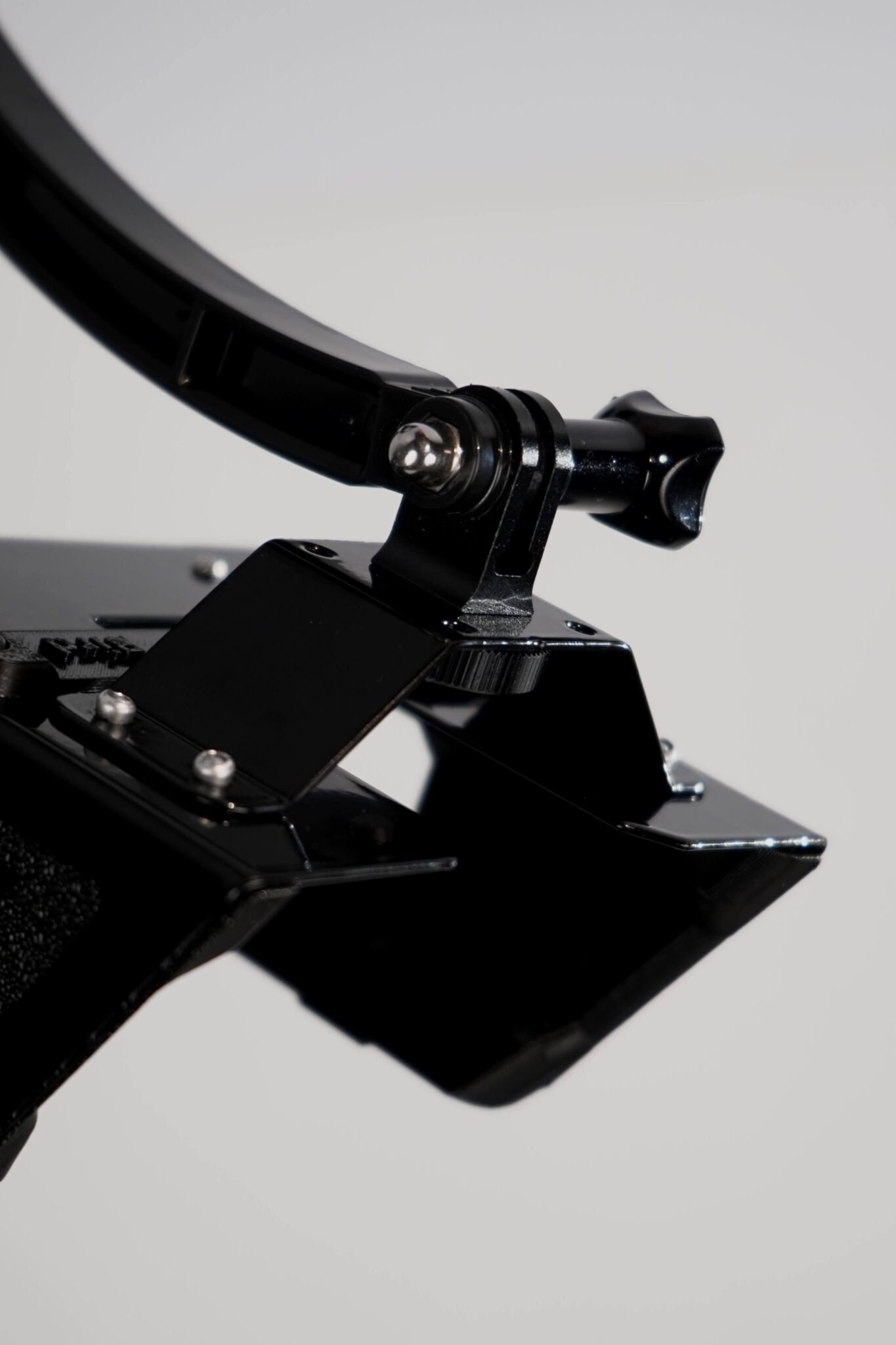

| Mounting interface | Standard action camera mount |
| Operating temperature range | −30 °C to +75 °C |
| Dimensions (L × W × H) | 150 × 75 × 100 mm |
It Vehicle mount for “Chuyka” includes:
- Fastener – 1 pc.
Delivery Methods
The primary delivery method is via Nova Poshta. We also ship via Ukrposhta or Meest Express.
Payment Methods
You can choose from several payment options:
-
Full Payment:
Pay for the order in full and collect it at the post office. -
Cash on Delivery:
Partial prepayment is required. If the item is not in stock, we start the production process. Afterward, we send the item and provide you with the tracking number. To collect the order from the post office, you will need to pay the remaining balance upon receipt. -
Partial Payment:
Reserve your order, and we begin the production process. Once your order is ready for shipment, you pay the remaining balance. We then send the item and provide you with the tracking number.
Return and Exchange Policy
Our company processes returns and exchanges in accordance with legal requirements.
Return Period:
Returns are accepted within 14 days of receipt (for items of proper quality).
Return Delivery:
Return shipping is carried out as per prior agreement.
In accordance with current legislation, you may return or exchange items of proper quality if:
- The item has not been used and shows no signs of use by the consumer, such as scratches, chips, scuffs, stains, etc.
- The item is fully complete, and the factory packaging is intact.
- The item retains its commercial appearance and consumer properties.
Installation and Preparation
Surface mounting
“Vacuum” option:
Clean the glass or smooth panel. Press the platform firmly and secure each of the three suction cups one by one using the corresponding levers.
“Rigid mounting” option:
Use the four holes on the metal base to secure it with screws or self-tapping screws directly to the vehicle interior.
3.2. Position adjustment
Using the extension arm and joints, set the optimal height and tilt angle of the mount. Securely tighten the locking bolts (a screwdriver may be used if needed).
Device fixing modes
The design allows choosing one of two usage modes:

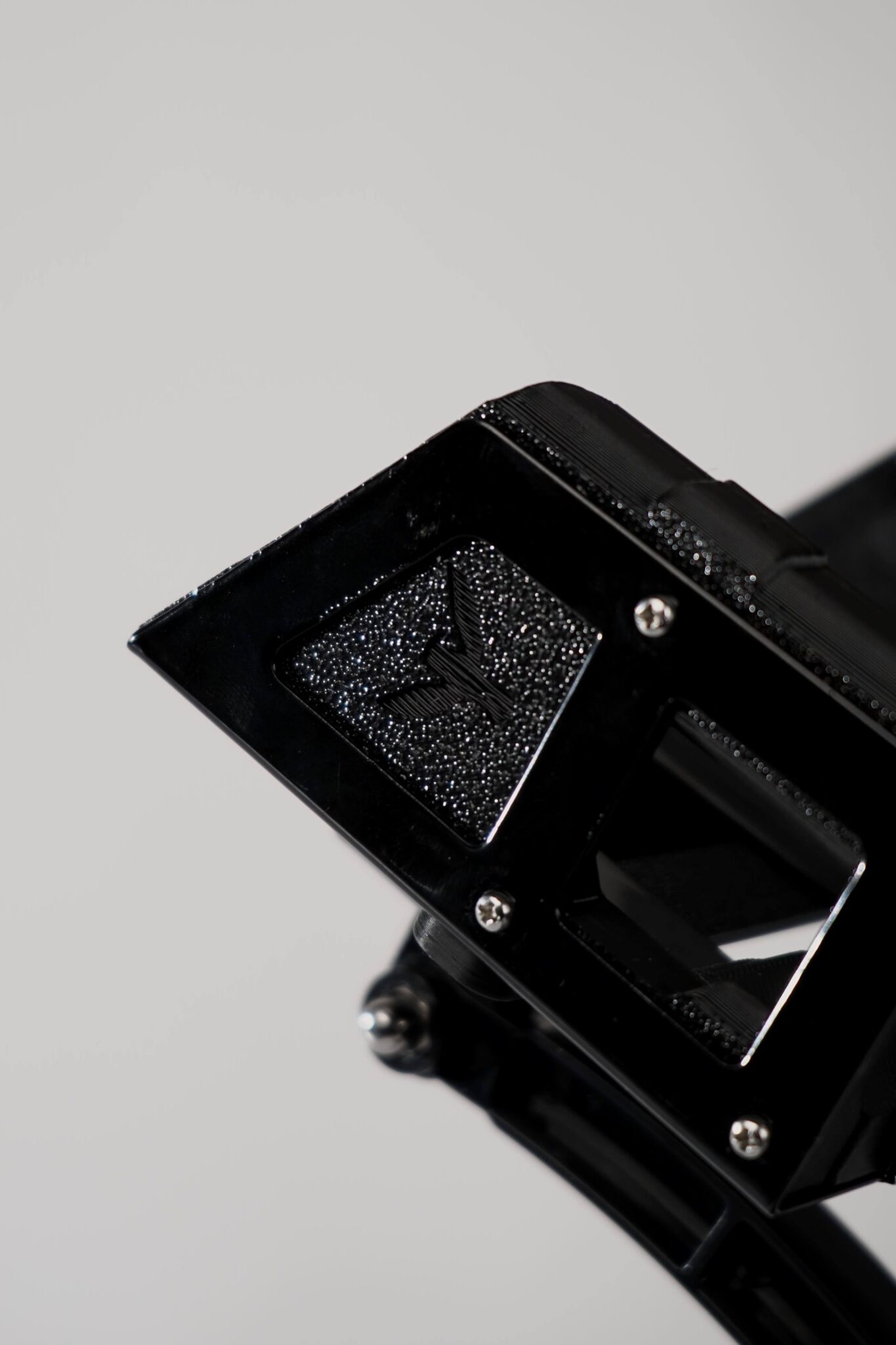

“Maximum stability” mode (with rear plate):
The device is secured with the standard clip to the rear plastic plate. This ensures that the device will not fall out even during strong impacts or vehicle rollover.
“Quick access” mode (without rear plate):
Unscrew the two screws on the rear of the base and remove the rear plate. The “Chuika” device will be held only by the side guides. This allows instant removal of the device with one hand.
Maintenance and Safety
Suction cup maintenance:
If contaminated, rinse the silicone bases with warm water to restore their adhesion properties.
Safety tether:
For extreme operating conditions, an additional safety tether (lanyard) may be used.
Video guide:
For a visual overview of the assembly and adjustment process, scan the QR code below.
